The Overlooked Component

Why Downspouts Matter

A gutter system is only as effective as its drainage. Every linear foot of gutter channel collects rainwater from the roof and directs it toward the downspouts, making these vertical pipes the single exit point for the entire system. When downspouts fail, the gutters become nothing more than long troughs holding standing water against the fascia board.

Central Indiana receives 42 to 43 inches of rainfall annually, according to National Weather Service Indianapolis data. On a 2,000-square-foot roof, that translates to roughly 52,000 gallons of water per year flowing through the gutter system. Each downspout handles a proportional share of that volume, and during the spring storm season from April through June, a single heavy downpour can deliver 2 to 4 inches of rain in under an hour.

Winter introduces a different failure mode entirely. When temperatures drop below freezing overnight and rise above 32 degrees during the day, residual water inside downspouts freezes and expands. Each freeze-thaw cycle adds another layer of ice until the downspout is blocked solid. Once frozen, the entire gutter run it serves stops draining. Water backs up, ice accumulates, and the combined weight can exceed the load capacity of standard gutter hangers, pulling the system off the fascia.

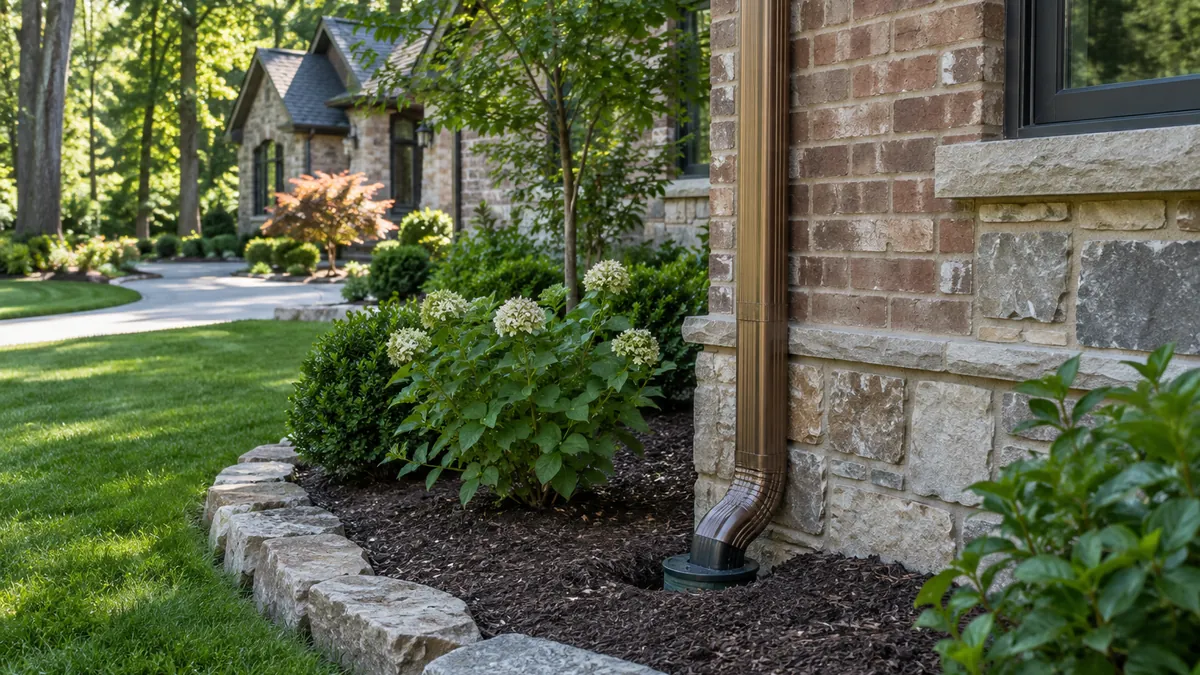

Downspout drainage system on a Hamilton County residence

Downspout Drainage by the Numbers

52,000 gallons of annual roof runoff on a typical 2,000 sq ft home
42-43 inches of annual rainfall in Central Indiana
2-4 inches possible in a single spring storm event
9% expansion when water freezes inside downspouts
Dozens of cycles per winter crossing 32°F in Hamilton County
Complete failure when a single frozen downspout blocks an entire gutter run

Diagnosis

Common Downspout Problems in Hamilton County

Most downspout failures trace back to one of five root causes, each amplified by Central Indiana's climate and soil conditions.

Frozen & Blocked Downspouts

Indiana's relentless freeze-thaw cycles build ice layers inside downspouts until drainage stops completely. The backed-up weight stresses hangers and can pull gutter sections off the fascia board. Downspouts on north-facing walls are especially vulnerable because they receive less solar warming.

Disconnected Joints

Thermal expansion and contraction loosens slip-fit connections between downspout sections over time. A gap at any joint allows water to pour directly against the siding and foundation instead of reaching the ground-level discharge point. Wind-driven debris impact accelerates the problem.

Improper Grading & Drainage Direction

Downspouts that discharge onto flat or back-graded soil send water directly toward the foundation. Hamilton County's clay-heavy soil compounds this issue because clay drains poorly and holds moisture against foundation walls for extended periods, increasing hydrostatic pressure.

Undersized Downspouts

Standard 2x3-inch downspouts may be insufficient for homes with steep roof pitches, large collection areas, or multiple converging gutter runs. During heavy spring storms, undersized downspouts overflow at the gutter-to-downspout connection, defeating the entire system.

Foundation Pooling

When downspout extensions are missing, damaged, or too short, water pools within inches of the foundation. Over months and years, this saturates the soil, creates uneven settling, and can lead to basement seepage or structural cracking. The problem is most severe in areas with clay subsoil, which is common throughout Hamilton County.

Solutions

Downspout Solutions for Indiana Homes

Every property has different drainage requirements. The right solution depends on lot grading, soil composition, frost line depth, and roof configuration.

Extension

Downspout Extensions

Rigid or flexible extensions route water 4 to 10 feet away from the foundation. For Hamilton County homes on clay soil, the minimum recommended distance is 8 feet. Extensions come in above-ground, fold-up, and roll-out styles, each suited to different landscape configurations and mowing patterns.

Underground

Underground Drainage Tie-Ins

Buried PVC or corrugated drain lines connect downspouts to a discharge point far from the structure. In Indiana, these lines must be buried below the frost line of 30 to 36 inches to prevent freeze cracking. Proper slope (minimum one-eighth inch per foot), gravel backfill, and a pop-up emitter or dry well at the terminus are essential for long-term performance in clay soil.

Surface

Splash Blocks

Concrete or plastic splash blocks placed beneath downspout outlets disperse water flow and prevent soil erosion at the discharge point. They are the simplest and most affordable drainage solution, best suited to properties where grading already carries water away from the foundation. Annual repositioning after mowing season is recommended.

Collection

Rain Barrel Integration

Rain barrels capture downspout discharge for garden irrigation, reducing runoff volume and water bills. Indiana receives the heaviest rainfall between April and June, coinciding with peak garden watering demand. Barrels require an overflow connection routed away from the foundation, and must be drained before the first hard freeze to prevent ice damage.

Technical Details

Downspout Sizing & Placement

2x3" Standard

Single-story homes
Roof areas under 600 sq ft per downspout
Low to moderate pitch
Simple rooflines

3x4" High Capacity

Two-story homes
Steep pitches (8/12+)
Valley convergence points
Roof areas over 600 sq ft

A 3x4-inch downspout handles roughly twice the water volume of a 2x3-inch downspout. For the two-story homes that dominate Carmel, Fishers, and Westfield subdivisions, the larger size provides a meaningful safety margin during heavy spring storms.

Placement Guidelines

Spacing: One downspout per 20 to 30 linear feet of gutter run
Corners: Place a downspout within 2 feet of each outside corner
Valleys: Add a downspout near any valley where two roof planes meet
Discharge distance: Minimum 4 feet from foundation; 8 to 10 feet recommended for clay soil
Underground depth: Below Indiana's 30- to 36-inch frost line per IRC Table R403.3(1)
Slope for buried lines: Minimum 1% grade (1/8 inch per foot) toward discharge

Transparent Pricing

Downspout Service Pricing

Service	Typical Price Range	Notes
Downspout Installation (2x3")	$8 – $15 per linear foot	Includes brackets, elbows, and outlet connection
Downspout Installation (3x4")	$12 – $22 per linear foot	Recommended for two-story homes and steep roofs
Downspout Extensions	$50 – $150 each	Rigid, flexible, or roll-out styles available
Underground Drainage Tie-In	$400 – $1,200 per run	Includes trenching, PVC pipe, gravel backfill, and pop-up emitter
Splash Blocks	$10 – $40 each	Concrete or decorative plastic; installed at discharge point
Rain Barrel Setup	$120 – $300	Includes diverter installation and overflow routing
Downspout Repair / Reattachment	$75 – $200 per downspout	Joint resealing, bracket replacement, and realignment
Frozen Downspout Service	$125 – $350 per downspout	Safe thaw and debris clearing; emergency availability

Common Questions

Downspout Services FAQ

Answers to the most common downspout questions from Hamilton County homeowners.

How many downspouts does a home need?

The general rule is one downspout for every 20 to 30 linear feet of gutter run, though roof pitch, valley concentration, and total square footage affect the calculation. A typical 2,000-square-foot home in Hamilton County requires four to six downspouts. Homes with steep roof pitches or multiple valleys that concentrate water flow may need additional downspouts to prevent overflow during heavy spring storms, which can dump 2 to 4 inches of rain in a single event across Central Indiana.

How far should downspouts drain from the foundation?

Downspouts should discharge water a minimum of 4 to 6 feet from the foundation, though 8 to 10 feet is recommended for Hamilton County homes built on clay-heavy soil. Clay soil drains poorly and holds moisture against foundation walls for extended periods, increasing hydrostatic pressure. Extensions, underground drain lines, or splash blocks can achieve the necessary distance. Underground drainage lines should be buried below Indiana's frost line of 30 to 36 inches to prevent freeze damage during winter.

What causes downspouts to freeze in winter?

Downspouts freeze when residual water inside the pipe is exposed to temperatures below 32 degrees Fahrenheit. Central Indiana experiences dozens of freeze-thaw cycles each winter, where daytime temperatures rise above freezing and overnight lows drop well below it. Water that does not fully drain after a thaw refreezes overnight, gradually building ice layers inside the downspout. Debris blockages accelerate freezing by trapping water. Once a downspout freezes solid, all gutter drainage stops, and the weight of backed-up water and ice can pull gutter sections off the fascia board.

Can downspouts be connected to underground drainage?

Yes, downspouts can connect to underground drainage systems using rigid PVC pipe or corrugated drain tile. In Indiana, underground drain lines must be buried below the frost line of 30 to 36 inches to prevent freeze-related cracking. The line should maintain a minimum slope of 1 percent (one-eighth inch per foot) toward the discharge point, which can be a pop-up emitter, dry well, or connection to the property's storm drainage system. Hamilton County's clay soil requires careful grading and gravel backfill around the pipe to ensure adequate water movement.

What size downspouts are recommended for Indiana homes?

Standard 2x3-inch downspouts handle most residential applications, but 3x4-inch downspouts are recommended for homes with large roof areas, steep pitches, or sections where multiple gutter runs converge. A 3x4-inch downspout handles roughly twice the water volume of a 2x3-inch downspout, making it the better choice for two-story Hamilton County homes with complex rooflines. Homes exceeding 3,000 square feet of roof area or those in areas prone to heavy spring downpours benefit significantly from the larger size.

How often should downspouts be inspected?

Downspouts should be inspected at least twice per year: once in late spring after the heaviest rain season begins and once in late fall after leaf drop is complete. Properties surrounded by mature oaks, maples, or sweetgum trees may need a third inspection in mid-fall. Each inspection should verify that joints are secure, extensions are properly connected, and water flows freely from top to bottom. After any major storm event, a visual check for disconnected joints or shifted extensions takes only a few minutes and can prevent costly water damage.
